A-N-D

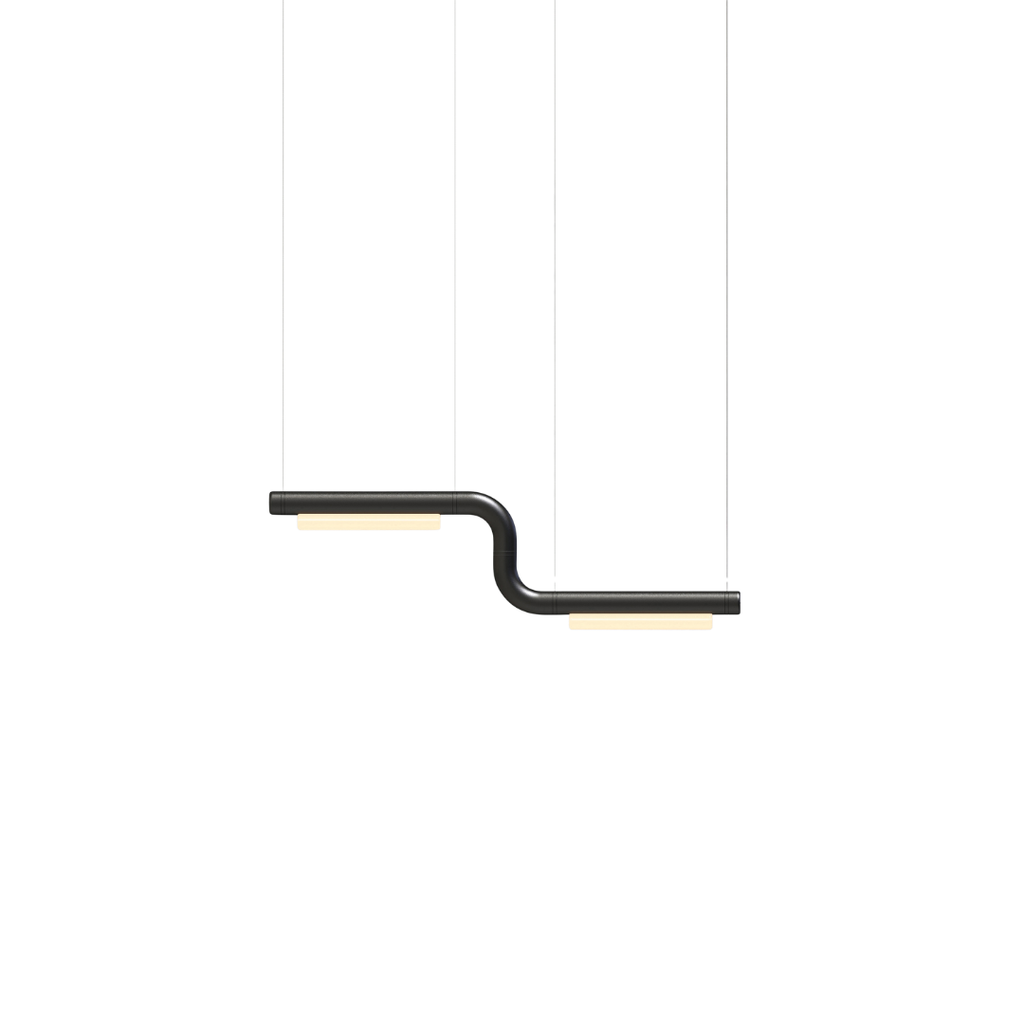

The Pipeline CM Pendant Series applies the modular capability of the Pipeline series design, utilizing combinations of parts to create unique configurations such as ‘S’ curves, loops, and larger angular arrangements which suit an array of functional and decorative applications.
Dimensions
CM1: 39.25" wide by 11.5" long by 2" deep; 96" cable length
CM2: 72.5" wide by 11.5" long by 2" deep; 96" cable length
CM3: 105.5" wide by 11.5" long by 2" deep; 96" cable length
CM4: 57.5" wide by 24.5" long by 3" deep; 96" cable length
CM5: 24.5" wide by 24.5" long by 3" deep; 96" cable length
CM6: 57.6" wide by 10.3" long by 3" deep; 96" cable length
CM7: 103" wide by 10.25" long by 3" deep; 96" cable length
CM8: 105" wide by 24.5" long by 3" deep; 96" cable length
CM9: 127" wide by 28" long by 28" deep; 96" cabe length (field adjustable)
Materials
Aluminum body. Cast acrylic.
Lighting Specs
CM1: 10W, CM2: 20W, CM3: 30W, CM4: 40W, CM5: 20W, CM6: 30W, CM7: 60W, CM8: 70W, CM9: 2 x 45W LED
47,000 hour Lifetime
3000k, 90+ CRI
Input Voltage: 100–240V + 277V
Integral 24V DC power supply included
Controls: Phase dimming / 0–10 / DALI
Please allow 4-6 weeks for delivery of all lighting by A-N-D unless otherwise noted.
